One New Heavy Duty Electrode from Ensign Ribbon Burners LLC 2009 Drawing No. H102308-1. Electrode was shipped to snack line bakery from Selas in 2017 and is still in original Selas box.
ERB Ensign Drawing No. H102308-1 Specs are:
- A- Hex Base Stud IC-Hextip
- B- Electrode Spring for Plate End Ceramic IC-Spring
- C- Plate End IC-71050

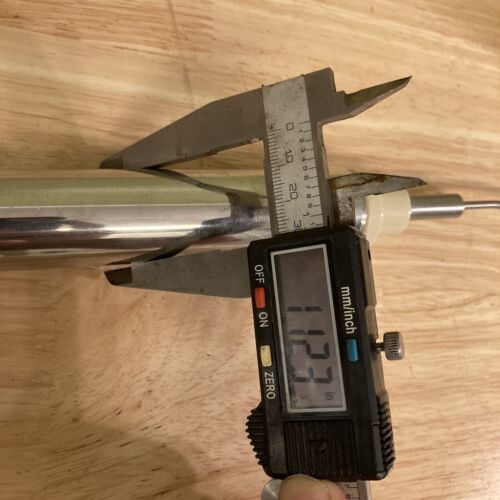

- D- 1-1/8″ OD SS Tube 16-inch length IC-32548-A
- E- Burner End Ceramic IC-48232-A
- F- Adjustable Conductor Sleeve IC-4289-A-6
- G- Bent Tip IC-42849-A-4

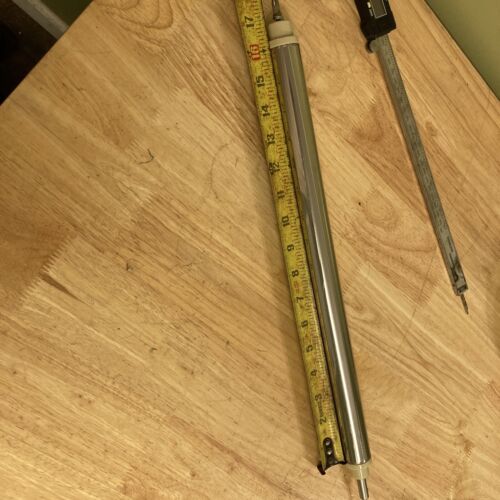

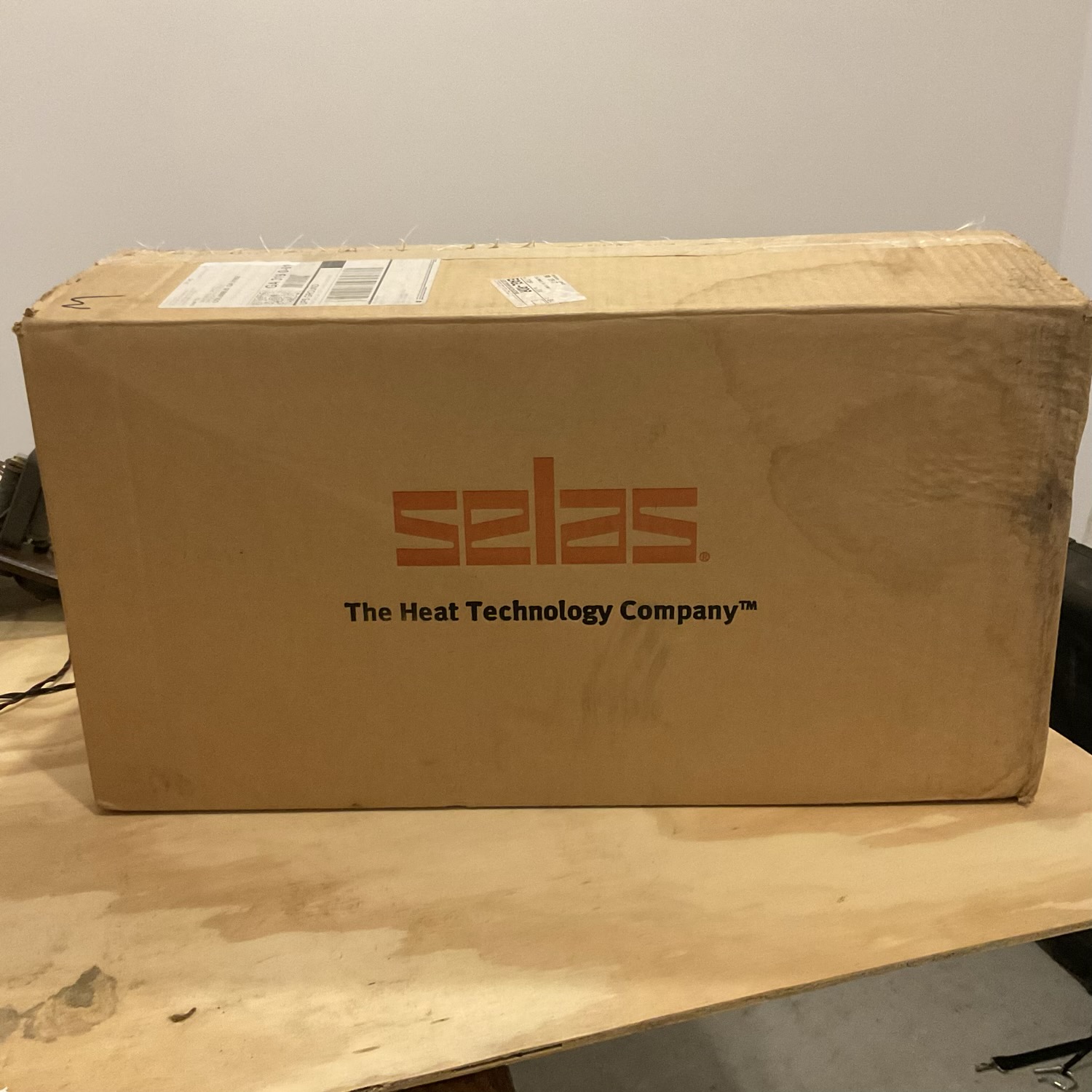

Overall length is 21-1/4-inches. At the time of listing we had 20 electrodes available. An order of 1 will be shipped 1 electrode. Image of multiple electrodes in box and original box is for reference only. Original box will only ship with majority purchase (qty of 11 or more).
